Épitrochoïdes en "plaques"

Paramétrisation d'une épitrochoïde

On appelle épitrochoïde la courbe plane décrite par un point P lié à un cercle mobile (de rayon b) roulant sans glisser sur un cercle fixe (de rayon a), le cercle mobile se touvant à l'extérieur du cercle fixe.

Soit h la distance du point P au centre du cercle mobile. On pose m = a/b et h = k*b.

Une paramétrisation de l'épitrochoïde est alors :

x=m*(b+1)*cos(p)-k*b*cos((m+1)*p));
y=m*(b+1)*sin(p)-k*b*sin((m+1)*p));

le paramètre p variant de 0 à 2*PI.

Paramétrisation de la surface

On introduit un deuxième paramètre (q) de la façon suivante :

x=sin(q)*(m*(b+1)*cos(p)-k*b*cos((m+1)*p));
y=sin(q)*(m*(b+1)*sin(p)-k*b*sin((m+1)*p));
z=c*cos(q);

1)  m = 3

k = 0.2

Objet Texture Rendu
m=3;
k=0.2;
c=0.2;b=2;
p=2*PI*u;
q=PI*v;
x=sin(q)*(m*(b+1)*cos(p)-k*b*cos((m+1)*p));
y=sin(q)*(m*(b+1)*sin(p)-k*b*sin((m+1)*p));
z=c*cos(q);		 mt=3;
nt=15;
p=2*PI*u;
q=PI*v;
red=abs(cos(mt*p));
blue=abs(cos(nt*q));
green=1-red*blue;		 etrochsec11.jpg

k = 0.5

Objet Texture Rendu
m=3;
k=0.5;
c=0.2;b=2;
p=2*PI*u;
q=PI*v;
x=sin(q)*(m*(b+1)*cos(p)-k*b*cos((m+1)*p));
y=sin(q)*(m*(b+1)*sin(p)-k*b*sin((m+1)*p));
z=c*cos(q);		 mt=3;
nt=15;
p=2*PI*u;
q=PI*v;
red=abs(cos(mt*p));
blue=abs(cos(nt*q));
green=1-red*blue;		 etrochsec12.jpg

k = 0.8

Objet Texture Rendu
m=3;
k=0.8;
c=0.2;b=2;
p=2*PI*u;
q=PI*v;
x=sin(q)*(m*(b+1)*cos(p)-k*b*cos((m+1)*p));
y=sin(q)*(m*(b+1)*sin(p)-k*b*sin((m+1)*p));
z=c*cos(q);		 mt=3;
nt=15;
p=2*PI*u;
q=PI*v;
red=abs(cos(mt*p));
blue=abs(cos(nt*q));
green=1-red*blue;		 etrochsec13.jpg

2)  m = 4

k = 0.2

Objet Texture Rendu
m=4;
k=0.2;
c=0.2;b=2;
p=2*PI*u;
q=PI*v;
x=sin(q)*(m*(b+1)*cos(p)-k*b*cos((m+1)*p));
y=sin(q)*(m*(b+1)*sin(p)-k*b*sin((m+1)*p));
z=c*cos(q);		 mt=4;
nt=15;
p=2*PI*u;
q=PI*v;
red=abs(cos(mt*p));
blue=abs(cos(nt*q));
green=1-red*blue;		 etrochsec21.jpg

k = 0.5

Objet Texture Rendu
m=4;
k=0.5;
c=0.2;b=2;
p=2*PI*u;
q=PI*v;
x=sin(q)*(m*(b+1)*cos(p)-k*b*cos((m+1)*p));
y=sin(q)*(m*(b+1)*sin(p)-k*b*sin((m+1)*p));
z=c*cos(q);		 mt=4;
nt=15;
p=2*PI*u;
q=PI*v;
red=abs(cos(mt*p));
blue=abs(cos(nt*q));
green=1-red*blue;		 etrochsec22.jpg

k = 0.8

Objet Texture Rendu
m=4;
k=0.8;
c=0.2;b=2;
p=2*PI*u;
q=PI*v;
x=sin(q)*(m*(b+1)*cos(p)-k*b*cos((m+1)*p));
y=sin(q)*(m*(b+1)*sin(p)-k*b*sin((m+1)*p));
z=c*cos(q);		 mt=4;
nt=15;
p=2*PI*u;
q=PI*v;
red=abs(cos(mt*p));
blue=abs(cos(nt*q));
green=1-red*blue;		 etrochsec23.jpg

3)  m = 5

k = 0.2

Objet Texture Rendu
m=5;
k=0.2;
c=0.2;b=2;
p=2*PI*u;
q=PI*v;
x=sin(q)*(m*(b+1)*cos(p)-k*b*cos((m+1)*p));
y=sin(q)*(m*(b+1)*sin(p)-k*b*sin((m+1)*p));
z=c*cos(q);		 mt=5;
nt=15;
p=2*PI*u;
q=PI*v;
red=abs(cos(mt*p));
blue=abs(cos(nt*q));
green=1-red*blue;		 etrochsec31.jpg

k = 0.5

Objet Texture Rendu
m=5;
k=0.5;
c=0.2;b=2;
p=2*PI*u;
q=PI*v;
x=sin(q)*(m*(b+1)*cos(p)-k*b*cos((m+1)*p));
y=sin(q)*(m*(b+1)*sin(p)-k*b*sin((m+1)*p));
z=c*cos(q);		 mt=5;
nt=15;
p=2*PI*u;
q=PI*v;
red=abs(cos(mt*p));
blue=abs(cos(nt*q));
green=1-red*blue;		 etrochsec32.jpg

k = 0.8

Objet Texture Rendu
m=5;
k=0.8;
c=0.2;b=2;
p=2*PI*u;
q=PI*v;
x=sin(q)*(m*(b+1)*cos(p)-k*b*cos((m+1)*p));
y=sin(q)*(m*(b+1)*sin(p)-k*b*sin((m+1)*p));
z=c*cos(q);		 mt=5;
nt=15;
p=2*PI*u;
q=PI*v;
red=abs(cos(mt*p));
blue=abs(cos(nt*q));
green=1-red*blue;		 etrochsec33.jpg

4)  m = 6

k = 0.2

Objet Texture Rendu
m=6;
k=0.2;
c=0.2;b=2;
p=2*PI*u;
q=PI*v;
x=sin(q)*(m*(b+1)*cos(p)-k*b*cos((m+1)*p));
y=sin(q)*(m*(b+1)*sin(p)-k*b*sin((m+1)*p));
z=c*cos(q);		 mt=6;
nt=15;
p=2*PI*u;
q=PI*v;
red=abs(cos(mt*p));
blue=abs(cos(nt*q));
green=1-red*blue;		 etrochsec41.jpg

k = 0.5

Objet Texture Rendu
m=6;
k=0.5;
c=0.2;b=2;
p=2*PI*u;
q=PI*v;
x=sin(q)*(m*(b+1)*cos(p)-k*b*cos((m+1)*p));
y=sin(q)*(m*(b+1)*sin(p)-k*b*sin((m+1)*p));
z=c*cos(q);		 mt=6;
nt=15;
p=2*PI*u;
q=PI*v;
red=abs(cos(mt*p));
blue=abs(cos(nt*q));
green=1-red*blue;		 etrochsec42.jpg

k = 0.8

Objet Texture Rendu
m=6;
k=0.8;
c=0.2;b=2;
p=2*PI*u;
q=PI*v;
x=sin(q)*(m*(b+1)*cos(p)-k*b*cos((m+1)*p));
y=sin(q)*(m*(b+1)*sin(p)-k*b*sin((m+1)*p));
z=c*cos(q);		 mt=6;
nt=15;
p=2*PI*u;
q=PI*v;
red=abs(cos(mt*p));
blue=abs(cos(nt*q));
green=1-red*blue;		 etrochsec43.jpg

5)  m = 7

k = 0.2

Objet Texture Rendu
m=7;
k=0.2;
c=0.2;b=2;
p=2*PI*u;
q=PI*v;
x=sin(q)*(m*(b+1)*cos(p)-k*b*cos((m+1)*p));
y=sin(q)*(m*(b+1)*sin(p)-k*b*sin((m+1)*p));
z=c*cos(q);		 mt=7;
nt=15;
p=2*PI*u;
q=PI*v;
red=abs(cos(mt*p));
blue=abs(cos(nt*q));
green=1-red*blue;		 etrochsec51.jpg

k = 0.5

Objet Texture Rendu
m=7;
k=0.5;
c=0.2;b=2;
p=2*PI*u;
q=PI*v;
x=sin(q)*(m*(b+1)*cos(p)-k*b*cos((m+1)*p));
y=sin(q)*(m*(b+1)*sin(p)-k*b*sin((m+1)*p));
z=c*cos(q);		 mt=7;
nt=15;
p=2*PI*u;
q=PI*v;
red=abs(cos(mt*p));
blue=abs(cos(nt*q));
green=1-red*blue;		 etrochsec52.jpg

k = 0.8

Objet Texture Rendu
m=7;
k=0.8;
c=0.2;b=2;
p=2*PI*u;
q=PI*v;
x=sin(q)*(m*(b+1)*cos(p)-k*b*cos((m+1)*p));
y=sin(q)*(m*(b+1)*sin(p)-k*b*sin((m+1)*p));
z=c*cos(q);		 mt=7;
nt=15;
p=2*PI*u;
q=PI*v;
red=abs(cos(mt*p));
blue=abs(cos(nt*q));
green=1-red*blue;		 etrochsec53.jpg

6)  m = 8

k = 0.2

Objet Texture Rendu
m=8;
k=0.2;
c=0.2;b=2;
p=2*PI*u;
q=PI*v;
x=sin(q)*(m*(b+1)*cos(p)-k*b*cos((m+1)*p));
y=sin(q)*(m*(b+1)*sin(p)-k*b*sin((m+1)*p));
z=c*cos(q);		 mt=8;
nt=15;
p=2*PI*u;
q=PI*v;
red=abs(cos(mt*p));
blue=abs(cos(nt*q));
green=1-red*blue;		 etrochsec61.jpg

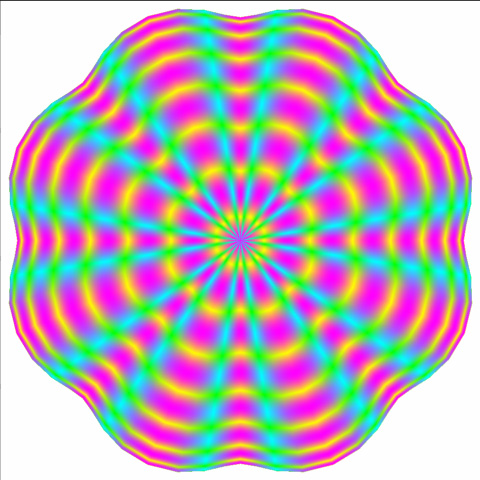

k = 0.5
